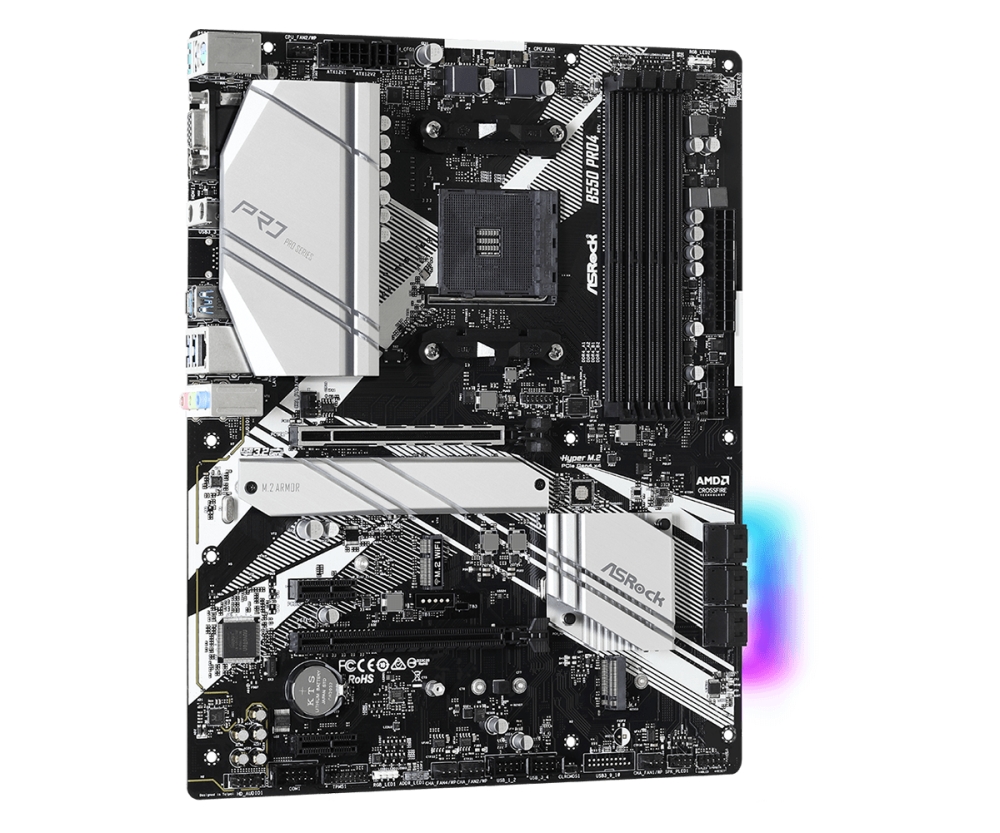

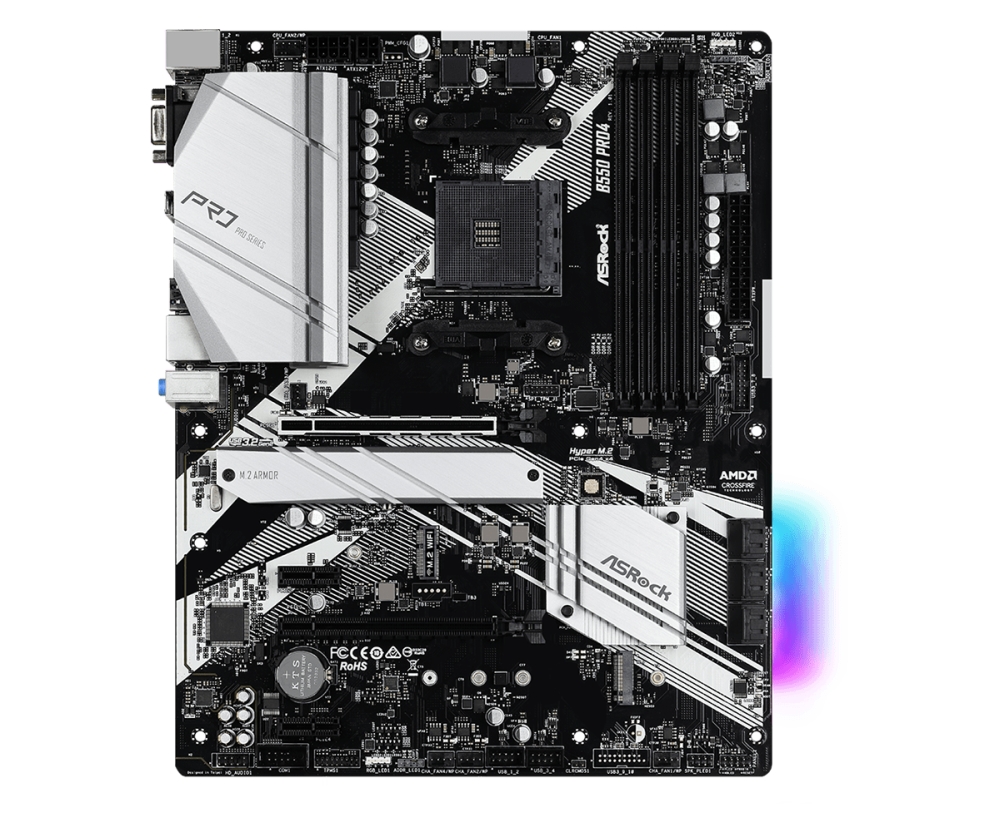

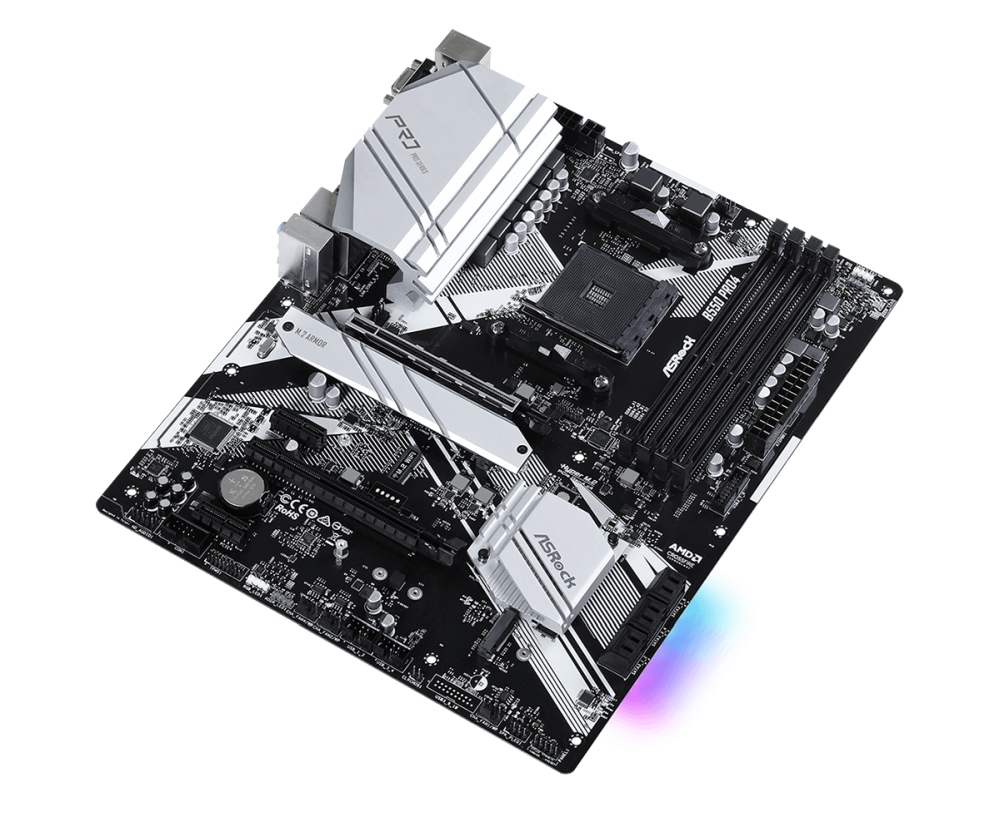

Asrock B550 Pro 4

Серия	PRO4
Процесор	AMD AM4 Ryzen
Чипсет	AMD B550
BIOS	128Mb AMI UEFI Legal BIOS with multilingual GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustmen
Памет	DDR4
Брой слотове	4 DIMM Slots, Max. capacity of system memory: max. 128GB, Supports Extreme Memory Profile (XMP) memory modules
Аудио	7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Nahimic Audio.
Безжична мрежа	-
Конектори	1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x 4 pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header.
Слотове	AMD Ryzen series CPUs (Matisse)- - 2 x PCI Express x16 Slots, AMD Ryzen series APUs- 2 x PCI Express x16 Slots; 2 x PCI Express 3.0 x1 Slots,Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module.
M.2 слот	1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module, 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module.

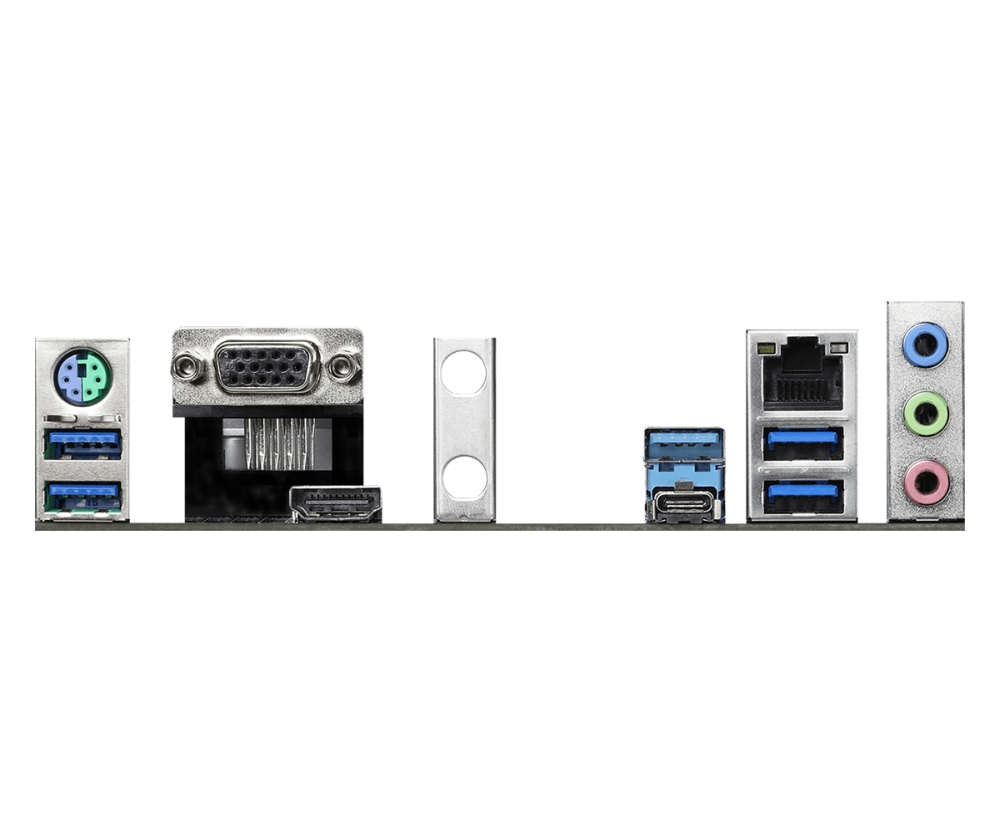

Интерфейс	Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port,1 x HDMI Port, 1 x DisplayPort 1.2, 2 x USB 2.0 Ports, 1 x USB 3.1 Gen2 Type-A Port, 1 x USB 3.1 Gen2 Type-C Port, 4 x USB 3.1 Gen1 Ports, 1 x RJ-45 LAN Port with LED.
Софтуер	ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN.
Операционна система	Microsoft Windows 10 64-bit
Форм-фактор	ATX
Специални функции	ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop.
