Дънни платки

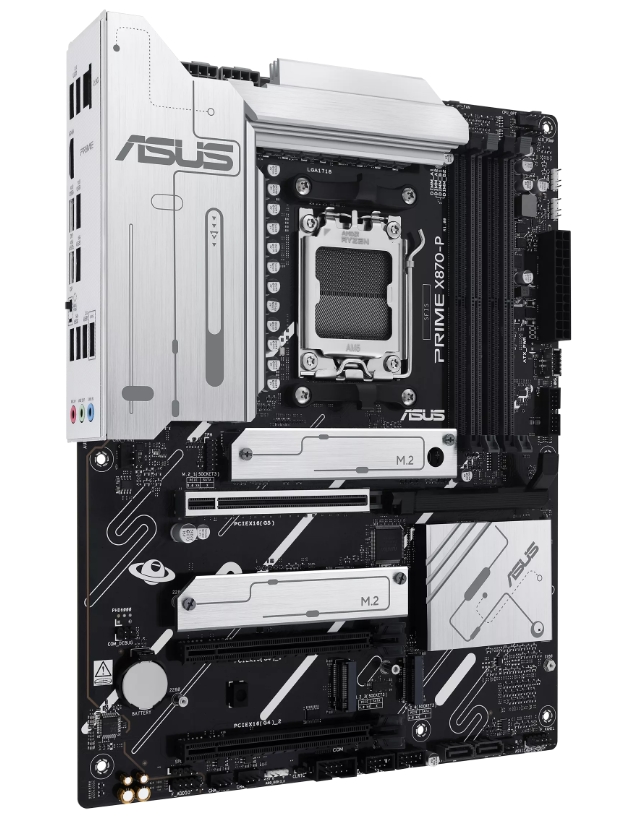

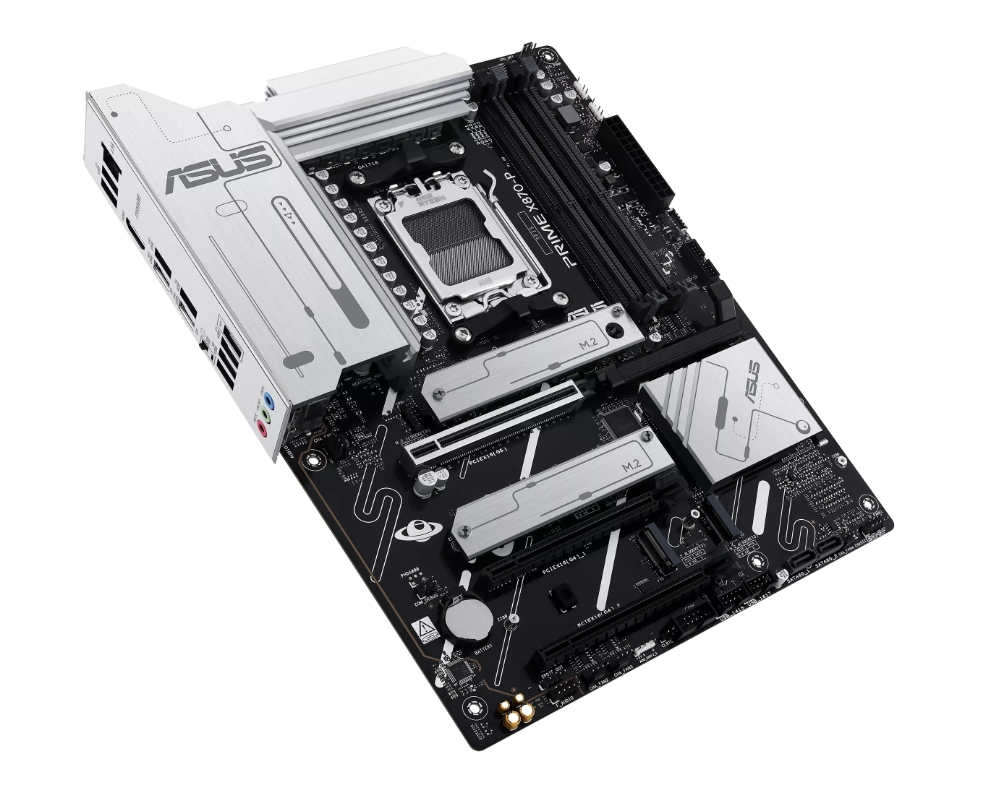

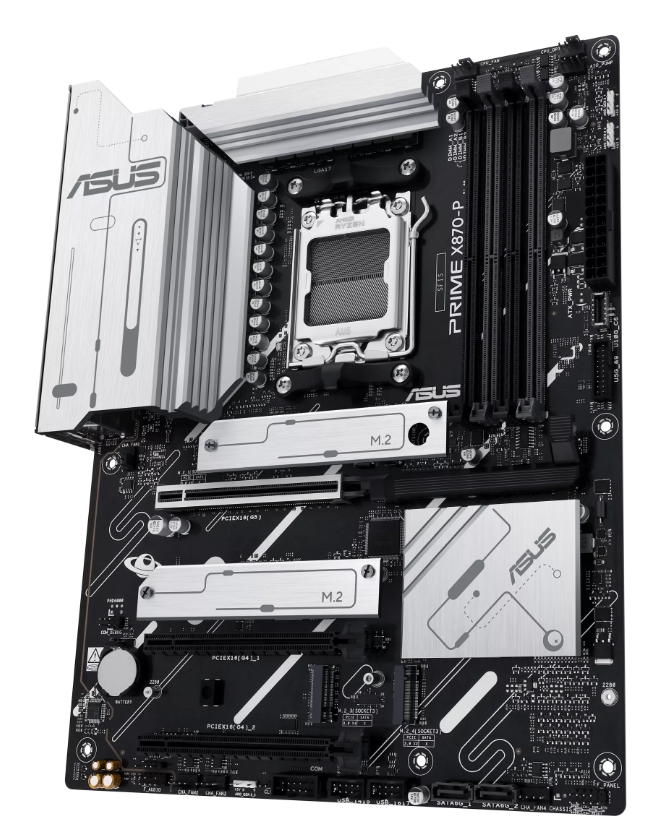

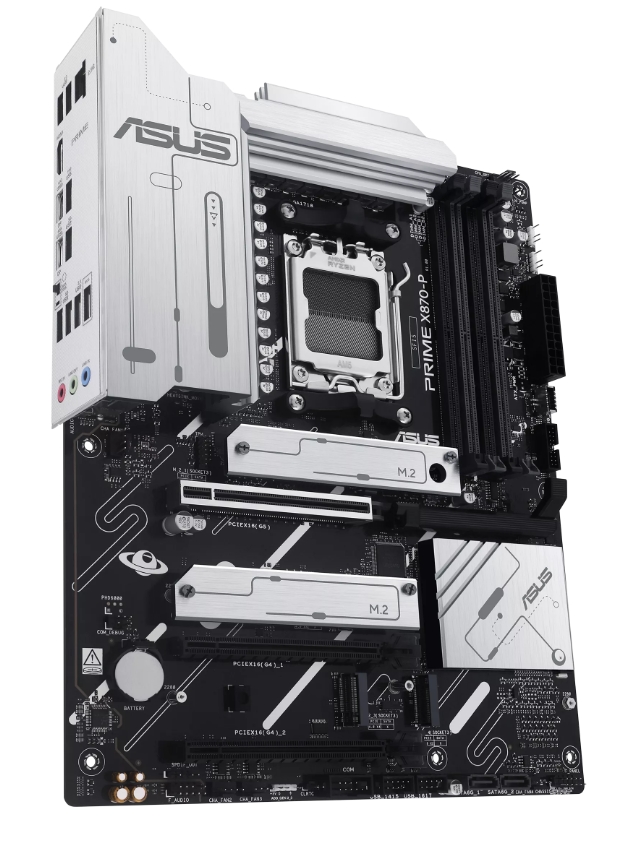

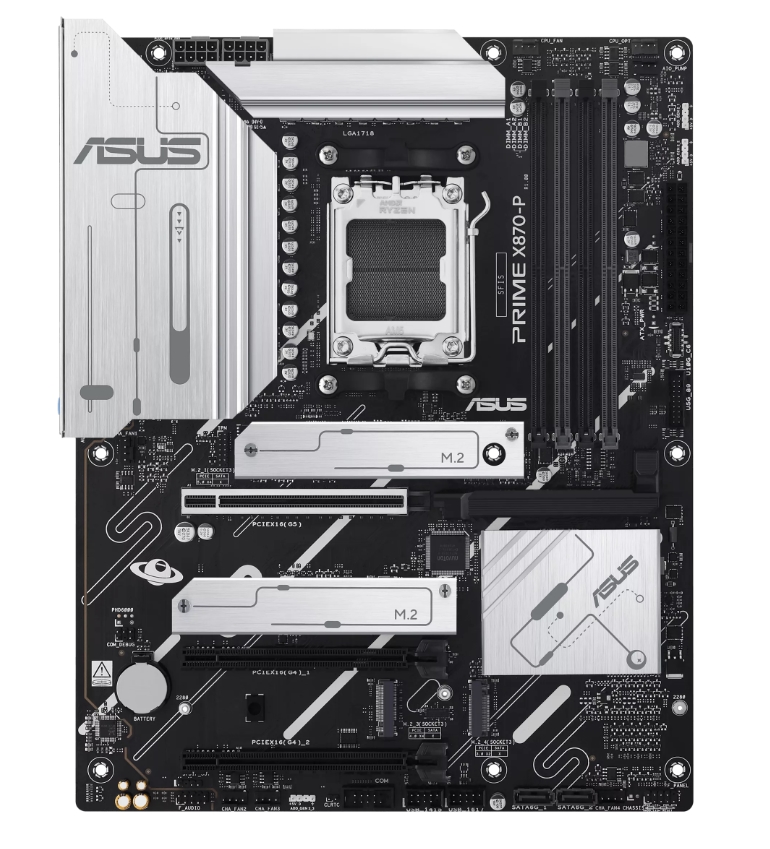

Asus Prime X870-P
| Серия | Prime |
|---|---|
| Процесор | AMD AM5 Ryzen |
| Чипсет | AMD X870 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Памет | DDR5 |
| Брой слотове | 4 DIMM Slots, Max. capacity of system memory: 256GB |
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers |
| Безжична мрежа | - |
| Конектори | 24-pin Main Power connector, 2 8-pin +12V CPU Power connectors |
| Слотове | CPU: PCIe 5.0 x16 slot, PCIe 4.0 x16 slot (supports x8/x4 mode); Chipset: 3 PCIe 4.0 x16 slots |
| M.2 слот | 4 M.2 slots (Key M) |

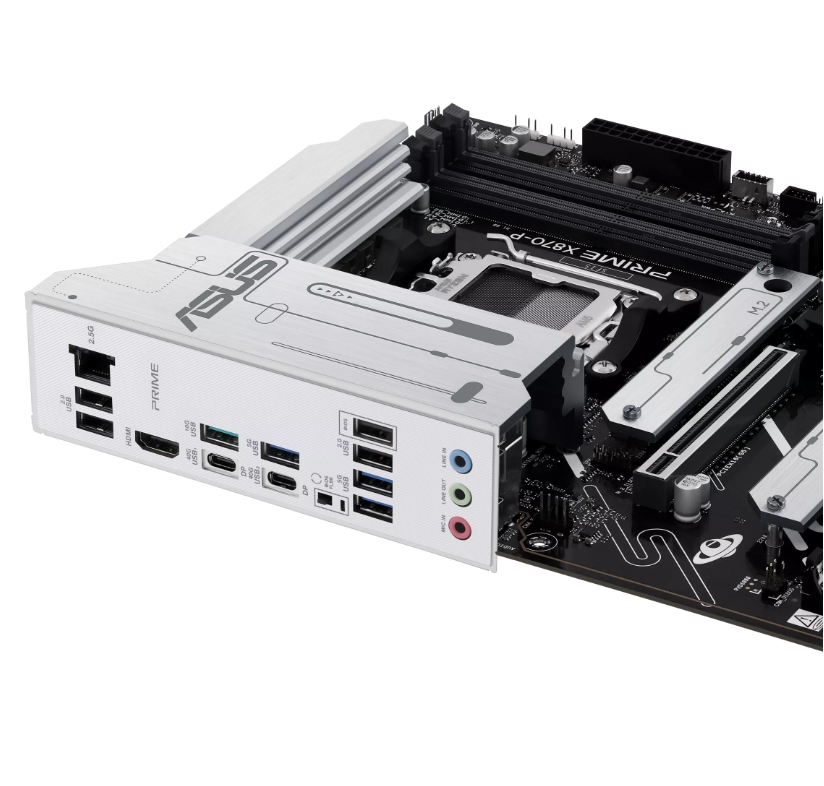

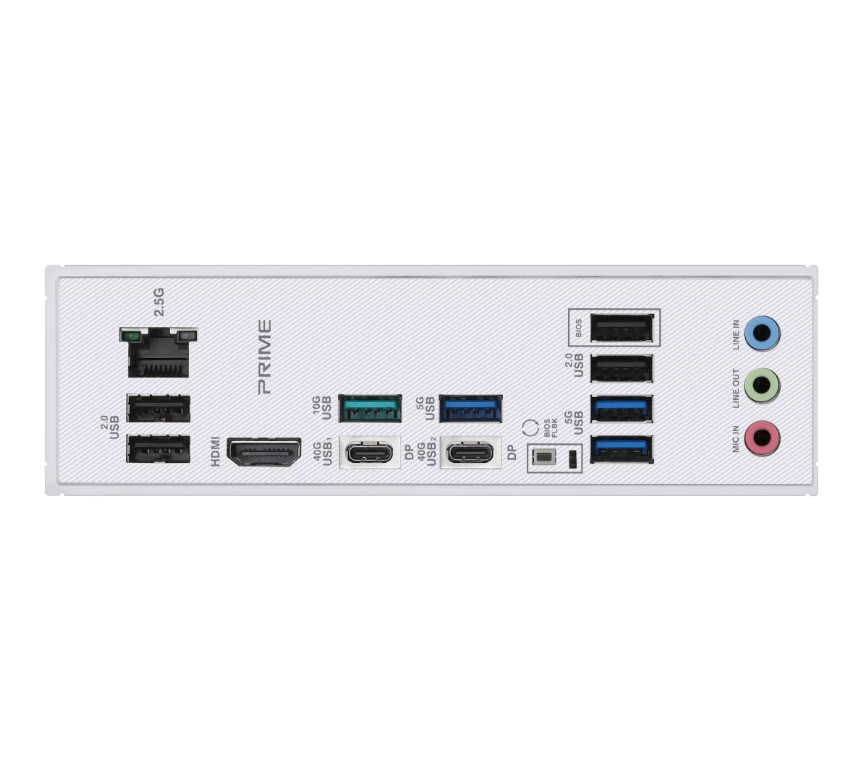

| Интерфейс | 2 USB4 (40Gbps) ports (2 x USB Type-C), USB 10Gbps port (1 x Type-A), 3 USB 5Gbps ports (3 x Type-A), 4 USB 2.0 ports (4 x Type-A), HDMI, Realtek 2.5Gb Ethernet port, 3 Audio jacks, BIOS FlashBack button |
| Софтуер | ASUS Exclusive Software |
| Операционна система | Windows 11 |
| Форм-фактор | ATX |
| Специални функции | ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync |
