UPS / Непрекъсваеми захр.

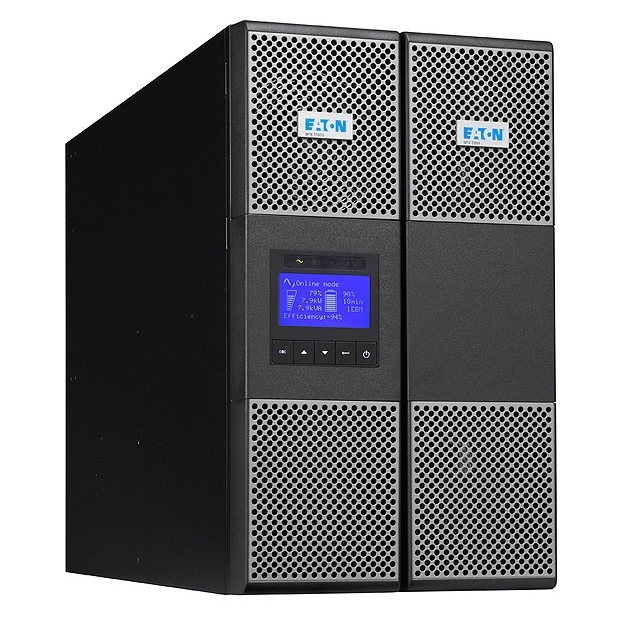

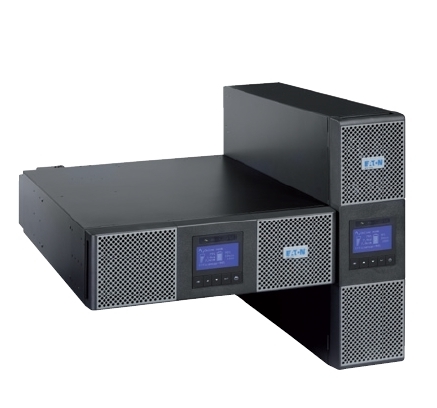

Eaton 9PX 5000i RT3U Netpack
| Вх.напрежение, V | 176-276V without derating (up to 100-276V with derating) |
|---|---|
| Изх. мощност, VA | 5000 VA |
| Брой изводи | 11 |
| Тип изводи | Terminal block + 2 controlled groups of 4 IEC C13 (10A) + 2 IEC C19 (16A) |
| Батерия, тип | Sealed, lead-acid (12 V / 5 Ah); Hot-swappable internal batteries and extended battery modules (EBMs) |
| Защити | Internal bypass, Auto shutdown function, Deep discharge protection |
| Технология | On-line double conversion with Power Factor Correction (PFC) system |
| Стандарти | UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
| Други | Communication ports: 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation. |
